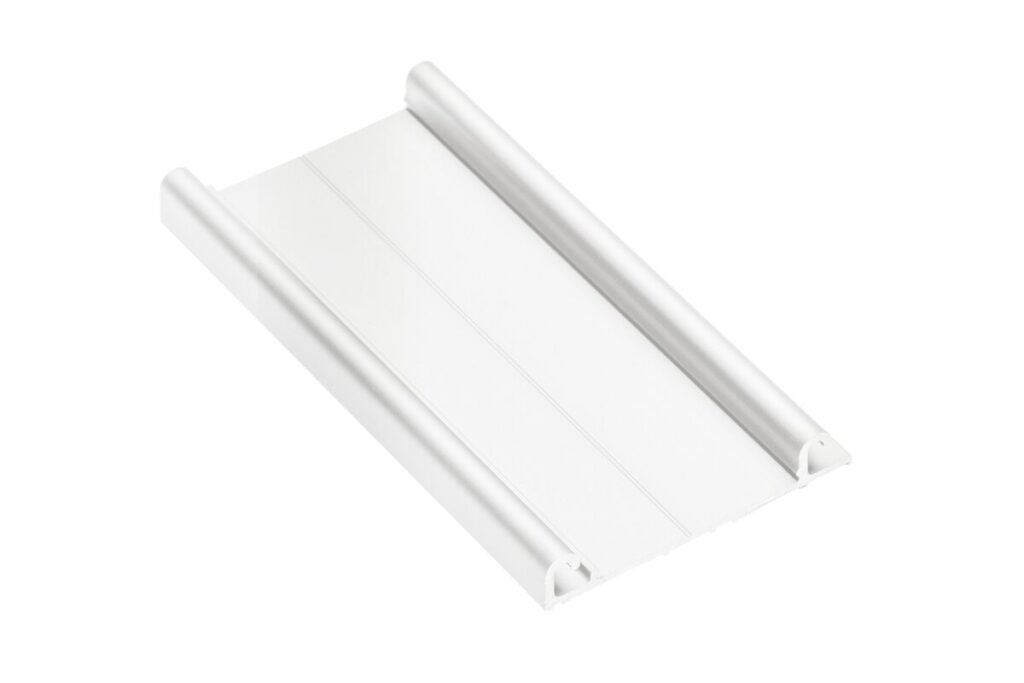

Aluminum profile bottom track EVO, L=2,35 m, white colour

One of the most important parts of sliding systems is the lower track. Its principle of operation is quite simple. The treadmills on which the lower carriages move carry loads from the wings of the cabinet. In most cases, this type of profile has two guide raceways on which the trolleys are based. The shape of these raceways is optimally adapted to the contact surface of the trolley. The guide raceways are resistant to static and dynamic loads. It is also worth remembering about the correct assembly. Before installing the lower guide track, the perpendicularity of the floor must be checked. We recommend keeping the lower track clean.

• optimal anode coating thickness of 10-15 μm;
• a groove along the track to facilitate the making of mounting holes;
• additional treatment processes to help keep the coating clean;
• corrosion resistance;
• easy processing and assembly;
• durable and environmentally friendly;
• the shape of the raceway is optimally adapted to the contact surface of the trolley;
• special grooves to protect against sand and dust.

Specifications: Length [mm]: 2350 | Frame/frameless system: frameless, frame | Producer: GTV Poland S.A., ul. Przejazdowa 21, 05-800 Pruszków, Poland, [email protected] +48 22 444 75 00 | Height [mm]: 8 | Width [mm]: 45 | Material: aluminium/cast iron | Colour: white | Quantity in package: 16 | Load [kg]: 50
