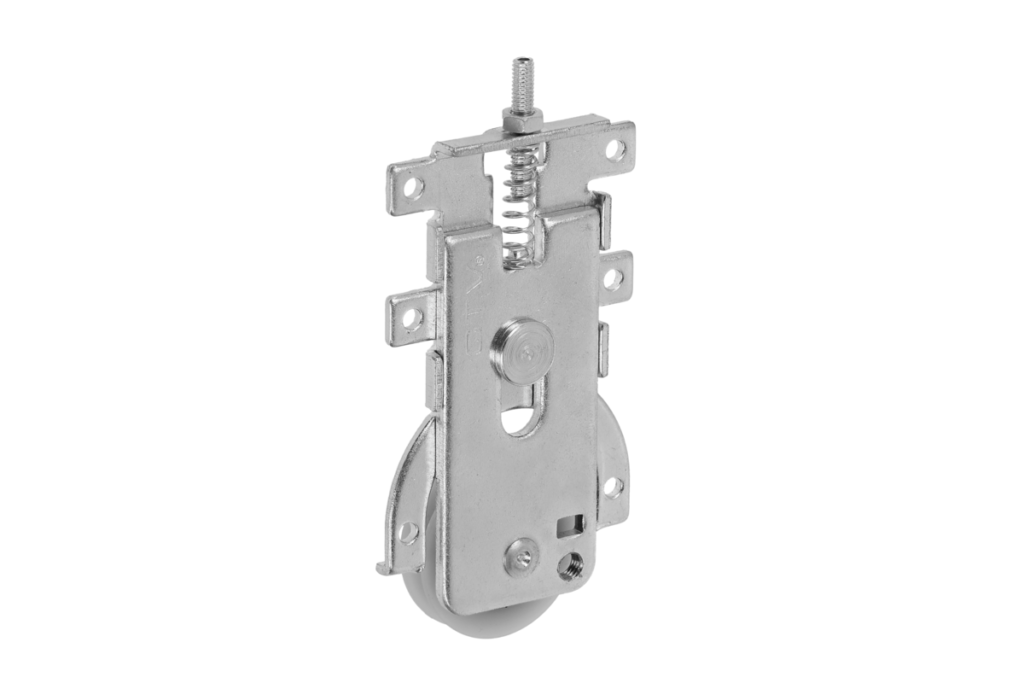

Bottom roller EVO2 (set – 2 pcs, key and screws 12 pcs ST 3,5 x 13)

The lower carriage A-WD-EVO2 is part of the chassis for 16 mm frameless systems and 18 mm for sliding doors for cabinets. The trolley carries the entire weight of the door and ensures their free and quiet movement. It is mounted to the board using the screws included in the kit. It is equipped with smooth adjustment in the range of 0-10 mm. The bogie wheel has a ball bearing that ensures low rolling resistance. The treadmill of the wheel is made of plastic, which guarantees quiet operation. The trolley is used together with the lower tracks A-TDEVO and A-TDEVO2. Material: plastic, metal. Maximum door weight: 50 kg.

• mounting to plates with screws;
• adjustment 0-10 mm;
• the wheel of the carriage has a ball bearing;
• used together with A-TDEVO and A-TDEVO2 downstream tracks;
• maximum door weight: 50 kg

Specifications: Frame/frameless system: frameless | Application: With EVO track, With EVO 2 track | Quantity in package: 50 sets | Producer: GTV Poland S.A., ul. Przejazdowa 21, 05-800 Pruszków, Poland, [email protected] +48 22 444 75 00 | Material: STEEL, plastic | Load [kg]: 50
