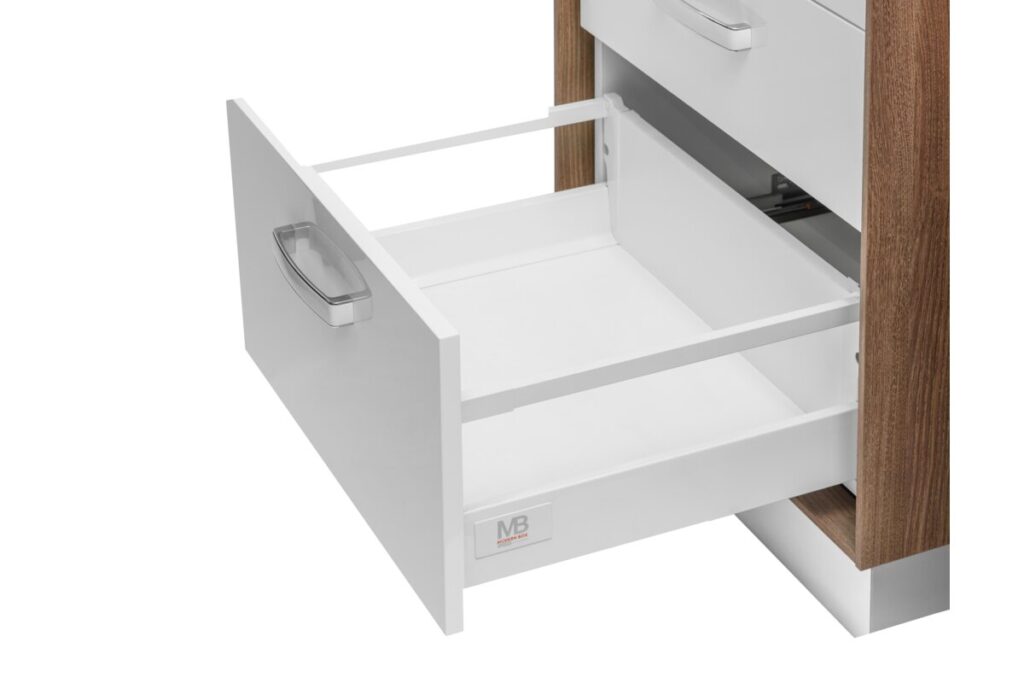

Modern Box square 350mm high 40kg white

The Modern Box Square drawer is certified for 60,000 cycles. Its maximum load is up to 40 kg, and a full extension occurs in any length from 250 to 550 mm. There are 3 height variants in the drawer (83, 146 and 210 mm), and the comfort of work is ensured by the silent closing mechanism. A solution that improves the work culture is also the synchronization of the guide path. Easy installation is ensured by vertical and horizontal adjustment in the degree of 2 mm, and aesthetics are guaranteed by the plugs of the adjustment holes. The drawer fits a whole range of space organization systems, cutlery inserts, mats and waste sorters.

• silent closing – the mechanism does not allow the drawer to close loudly, it is quietly closed;
• load up to 40 kg – they can store food supplies – sugar, flour, rice, as well as large-size equipment or heavy ceramics;
• Proven, certified product durability for 60,000 cycles;
• full extension in lengths from 250-550 mm will allow the drawer to be completely extended to the length of the entire guide, this is extremely useful for shallow drawers, where access to the back is difficult;
• 3 height variants (83, 146, 210 mm) for universal drawers for use with mortise and overlap fronts;
• synchronization of the guide path ensures the highest quality of work;
• wide ranges of vertical and horizontal adjustment ± 2mm;
• front tilt adjustment by means of a railing in medium and high drawers;
• adjustment on the outside of the drawer;
• possibility of using an internal front and additional railings;
• easy installation thanks to universal drilling template: PB-TEMPLATE-AXIS-MB, PB-D-DRILLJIG-SAMPLE;
• adjustment hole plugs included;
• a diverse range of solutions for the organization of the internal space of the drawer (transverse railings, cross strips, compartments), inserts for CUSTOMI or AXISPACE cutlery and waste binders;
• possibility of using an internal front, additional railings or perforated sides.

Specifications: Functions: Silent closing, Vertical and horizontal adjustment | Front mounting: for screws | Front tilt adjustment: yes | Tested durability: 60000 cycles | Kit Contents: 2 pcs. guide (L + P), 2 pcs. drawer side (L + P), 2 pcs. rear wall connector (L + P), 2 pcs. Front connector, 2 pcs. Cap, 2 pcs. Railing | Screws included: yes | Drawer type: Universal | Declaration of Conformity: yes | Individual packaging: yes | Producer: GTV Poland S.A., ul. Przejazdowa 21, 05-800 Pruszków, Poland, [email protected] +48 22 444 75 00 | Material: STEEL | Length [mm]: 305 | Load [kg]: 40 | Extension: full | Finish: lacquer | Additional information: high drawer set “C” | Side height [mm]: 83 | Colour: white
